产品目录PTFE 盘根
画册查看大图
品牌TICOPTFE
产品规格GP-1
颜色白色,黑色,彩色
材料100% 聚四氟乙烯
原产地中国,陕西,西安
港口西安陆路港,深圳,天津,上海等
支付方式T/T
更新时间2020-04-02
详细信息


        TICOPTFE, 军品指定供应商,,专注研发生产各种PTFE零件及产品11年 。


Basic Information

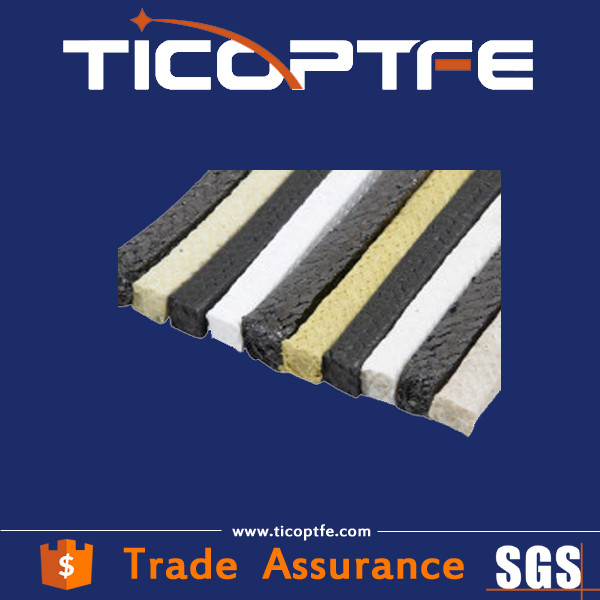

PTFE packing 2


     Packing (packing compilation) is also called packing, usually by the soft wire woven, usually the sectional area of a square or rectangular, circular strips of material filled in the sealing cavity, so as to achieve sealing. Packing seal is the first cotton fiber plug in to prevent fluid leakage channels mainly used as seal leakage, water lifting machinery. As the filler of extensive sources, easy processing, low cost, reliable sealing, simple operation, so it is still in use today. Now the packing is widely used in centrifugal pump, compressor, vacuum pump, mixer shaft and propeller seal, piston pump, reciprocating compressor, reciprocating seal refrigeration machine well, all kinds of rotary sealing valve stem.



     PTFE series including white PTFE packing, black PTFE packing, PTFE white woven aramid fiber packing, PTFE black woven aramid fiber packing, PTFE preoxidized fiber packing, white four fluorine silicone oil immersion packing, white four fluorine dipping heart packing. The series packing with PTFE as the main material with excellent chemical stability., corrosion resistance, sealing, high viscosity lubrication and good anti-aging endurance. Can work at -180℃~+260℃ temperature for a long time, in addition to the molten metal and liquid sodium fluoride, capable of all other chemicals in aqua regia in boiling and is not change. Mainly used for sanitary does not allow pollution working conditions, corrosion resistance and high speed is high, easy to wear and other conditions.

Cross Sectional Dimensions

weight

Density

PTFE Packing
(With Oil)

4mm*4mm

10mm*10mm

16mm*16mm

24mm*24mm

40mm*40mm

5Kg/Roll

10Kg/Roll

1.0-1.3g/cm3

5mm*5mm

12mm*12mm

18mm*18mm

25mm*25mm

6mm*6mm

14mm*14mm

19mm*19mm

28mm*28mm

8mm*8mm

15mm*15mm

20mm*20mm

30mm*30mm

PTFE Packing
(Without Oil)

4mm*4mm

10mm*10mm

16mm*16mm

24mm*24mm

40mm*40mm

5Kg/Roll

10Kg/Roll

1.6-1.8g/cm3

5mm*5mm

12mm*12mm

18mm*18mm

25mm*25mm

6mm*6mm

14mm*14mm

19mm*19mm

28mm*28mm

8mm*8mm

15mm*15mm

20mm*20mm

30mm*30mm



Application



Why%20Us

企业优势

1. 专注生产供应PTFE零部件和产品

2. 11年PTFE生产加工经验

3. 拥有26年的技术经验沉淀

4. 出口服务经验6年

5. 军品指定供应商

6. 众多行业,众多区域的服务经验

7. 27个国家长期稳定的客户合作


优质的产品

1. 价格最优

2. 100% 纯料,源头确保质量

3. 免费提供样品

4. SGS 标准认证

5. CNC 定制加工

6. 适合空海运的安全包装




专业服务

1. 6年出口服务经验

2. 服务过45国家3000余客户

3. 起订量灵活

4. 交货准时

5. 7*24小时快速响应

6. 如遇质量问题承诺换货
